VIEW5 Pro
Performance-Oriented Structure

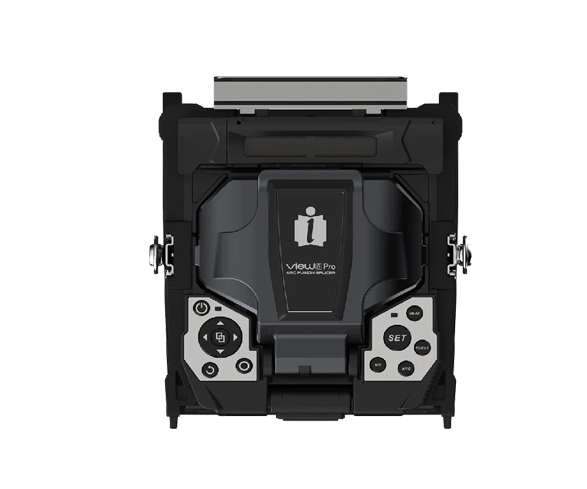

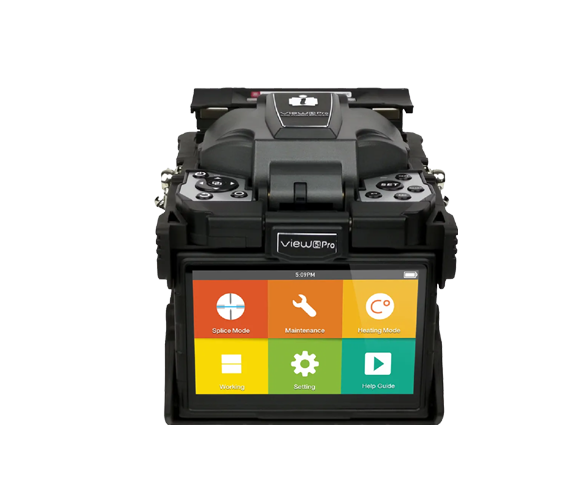

VIEW5 PRO, a core-alignment splicer with the world’s highest fiber image magnification rate, is the most proficient fusion splicer in the market.VIEW5 PRO, a core-alignment splicer with the world’s highest fiber image magnification rate, is the most proficient fusion splicer in the market. VIEW5 PRO’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x. The fusion splicer is equpped with built-in IoT module that connects to the INNO's View Pro Cloud Management System for real-time operation and management online.

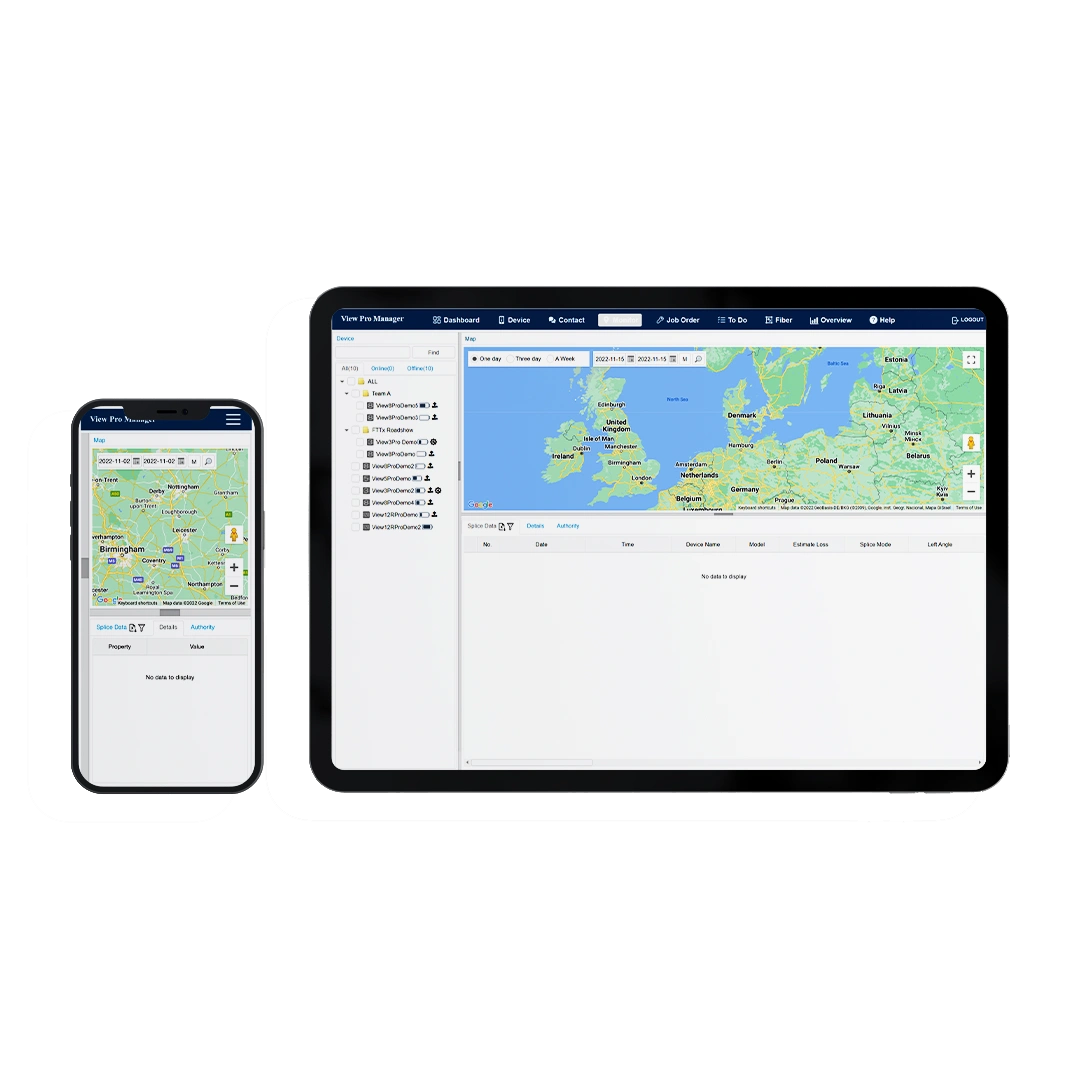

View Pro Management System is an integrated cloud-based software platform for INNO’s splicers. This innovative web-based application allows both technicians and managers of the splicers to maximize the use of its assets and to achieve the highest work efficiency. Real-time communications with tiered access rights and options to manage job orders, manage splicing machines, and send/receive reports are only a small part of the innovative work processes offered by the View Pro
Splice Time 08 seconds
Heating Time 15 seconds
Battery Capacity 200 cycles
Geolocation all through real-time
Asset & Fleet Management
GPS for real-time location
Preventive Maintanence
Comprehensive job assignment
Local and remote locking system
Detachable SOC Holder and Heating Oven
Built-in IoT Module for Mobile Data Communication
Active V-Groove Clad Alignment Splicing Method, Web-based, Real-time Operation System
Core Alignment Splicing with DACAS Profiling System
Web-based, Real-time Operation System
The Highest Magnification & Resolution, User Friendliest Interface with Built-in Videos, 5” Color LCD Touch Screen, Double Tapping (Zoom In & Out)
7 sec (quick mode) / 9 sec (SM auto mode)
15 sec (typical heating time)
single
520X magnification
149W x 177D x 151H mm (including rubber bumper) 130W x 166D x 140H mm (excluding rubber bumper)
touch screen / button
