Tread Networks-FTB 5GPro

Overview

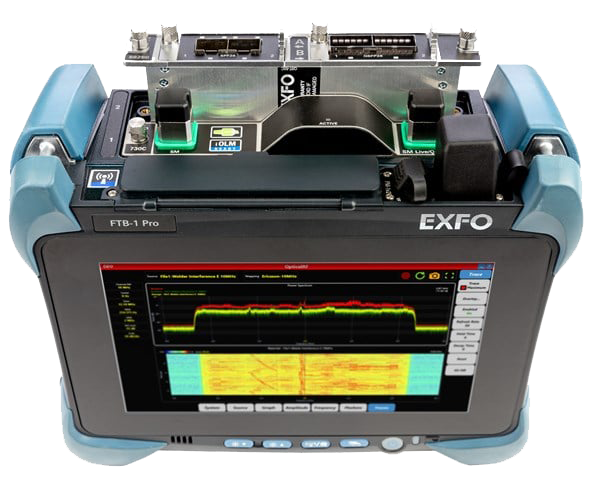

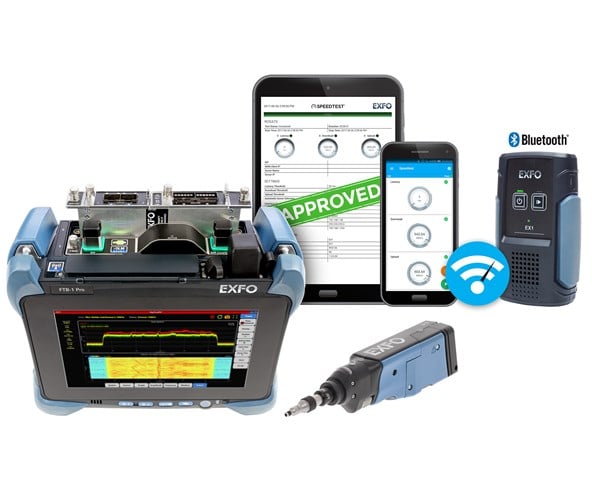

Building a rock-solid network that’s massively scalable and able to support new 5G services demanded by customers can be challenging—unless you have the right tools and procedures in place. EXFO’s FTB 5GPro test kit empowers technicians and contractors to efficiently validate next-gen fiber-based mobile networks and ensures your 5G deployment is done right

Unprecedented versatility

The intelligent OpticalRF (iORF) test application allows technicians to configure, analyze and diagnose RF interference and PIM issues in minutes―without needing to be an RF expert. The one-button, fully automated test application provides complete analysis of the RF spectrum with a pass or fail verdict.

Test capabilities

Fiber connector inspection Fiber link characterization Multi-protocol testing (CPRI, eCPRI/ORAN and Ethernet up to 100G) Timing and synchronization over fiber and over the air RF spectrum analysis (sub-6 GHz and mmWave) Intelligent RF spectrum analysis over CPRI Optical transceiver validation

Field efficiency

Follows standardized, field-proven test procedures Enables technicians at any skill level to instantly interpret results and accelerate outcomes Addresses any potential issues when installing, activating and maintaining mobile networks.

APPLICATIONS

FTTx network testing

RF over-the-air (OTA) testing

5G transport network validation (fronthaul, midhaul, backhaul)

RAN testing & troubleshooting (small cells, C-RAN, DAS)

CWDM/DWDM network validation

Ethernet/IP network testing and troubleshooting up to 100G

KEY FEATURES

Fiber connector inspection to detect dirty or damaged connectors (at each connection point)

iOLM for fiber link characterization to detect issues on the fiber span potentially impacting total budget loss (dB), such as macrobends, splices, bad connectors and fiber breaks

Fully automated RF spectrum analysis over CPRI (iORF) to identify issues like RF interference and PIM

RF spectrum analysis with FR1 (sub-6 GHz) and FR2 (mmWave), includes TDD gated sweep and 5G SSB

Timing and synchronization validation over fiber (1588-PTP, SyncE and Wander/TE) and over the air

eCPRI 10G and 25G link validation using BER and QoS metrics like latency testing
