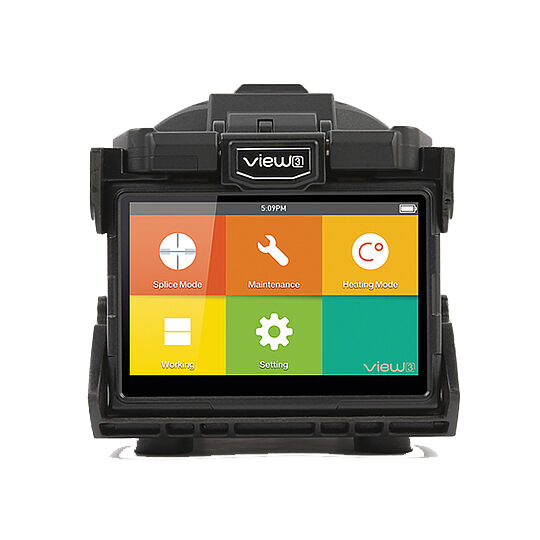

VIEW 3, an active clad-alignment splicer with the world's highest fiber image magnification rate, has the most powerful and innovative performance in the market today. VIEW 3 is equipped with user-friendly GUI on a high-resolution color LCD allowing first time splicer users to easily connect the optical fiber. By double-tapping the screen, all users can see and zoom the optical fiber up to 520 times. VIEW 3 provides easy and intuitive use.
143H X 130W X 155D mm (excluding rubber bumper) 152H X 147W X 175D mm (including rubber bumper)
1.95KG (without battery) / 2.31KG (with battery)
Touch Screen / High Resultion
Single Fiber
Fast Mode: 7 sec SM Mode: 9 sec
Fast Mode: 13 sec
520X Magnification
3 White LEDs
