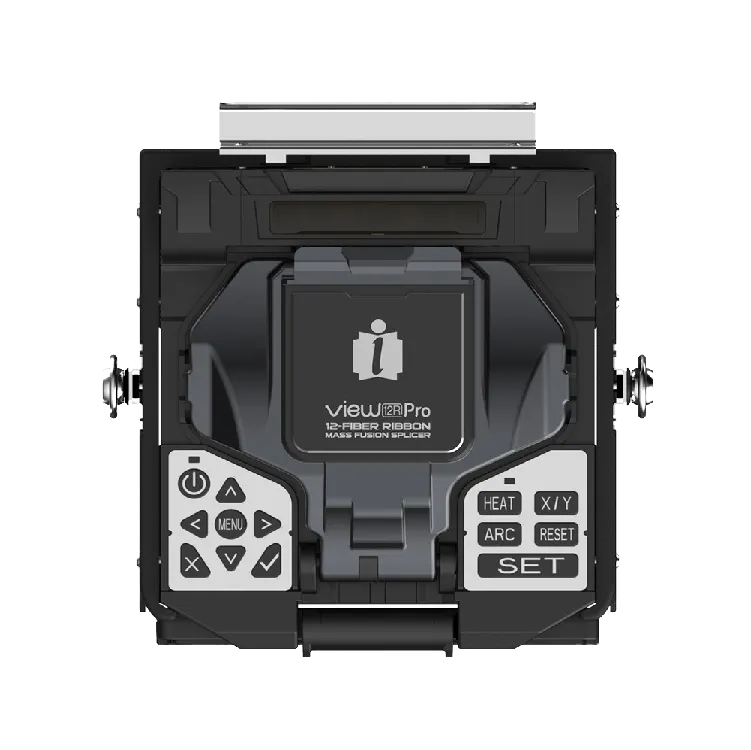

VIEW12R PRO, a ribbon splicer with the fully motorized clamp alignment system, is the market’s most powerful and state-of-the-art ribbon splicer. VIEW12R PRO, a ribbon splicer with the fully motorized clamp alignment system, is the most powerful and state-of-the-art ribbon splicer in the market. Its advanced automatic clamp alignment system offers an accurate and dependable ribbon fiber splicing up to 12 fibers with double-tapping (Zoom in & out) and scrolling to the world’s highest magnification of 250x for ribbon splicer. The VIEW12R PRO provides maximum work efficiency through the fast splicing & heating time, ultra-high battery capacity of 220 splice/heat cycles, and universal holder both for 250μm & 900μm single fiber. The VIEW12R PRO delivers the most reliable work experiences.
View Pro Management System is an integrated cloud-based software platform for INNO’s splicers. This innovative web-based application allows both technicians and managers of the splicers to maximize the use of its assets and to achieve the highest work efficiency. Real-time communications with tiered access rights and options to manage job orders, manage splicing machines, and send/receive reports are only a small part of the innovative work processes offered by the View Pro.
Splice Time 12 seconds
Heating Time 10 seconds
Battery Capacity 220 cycles
Geolocation all through real-time
Asset & Fleet Management
GPS for real-time location
Preventive Maintanence
Comprehensive job assignment
Local and remote locking system
Ultra-High Capacity Battery
Built-in IoT Module for Mobile Data Communication
Motorized Clamp Alignment System, Universal Single Fiber Holder
The Fastest Working Time
Web-based, Real-time Operation System

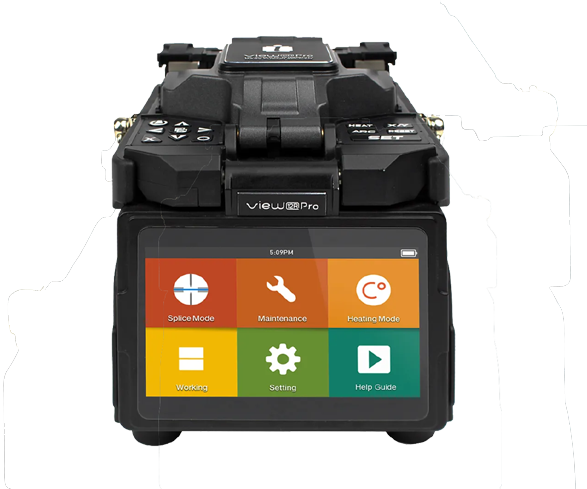

The Highest Magnification & Resolution, 5” Color LCD Touch Screen, Double Tapping (Zoom In & Out)
9 sec (single fiber) / 15 sec (ribbon fiber)
920 sec (typical heating time)
1 ~ 12
250x magnification
143W x 159D x 167H mm (including rubber bumper) 130W x 159D x 155H mm (excluding rubber bumper)
touch screen / button
